Accesorios

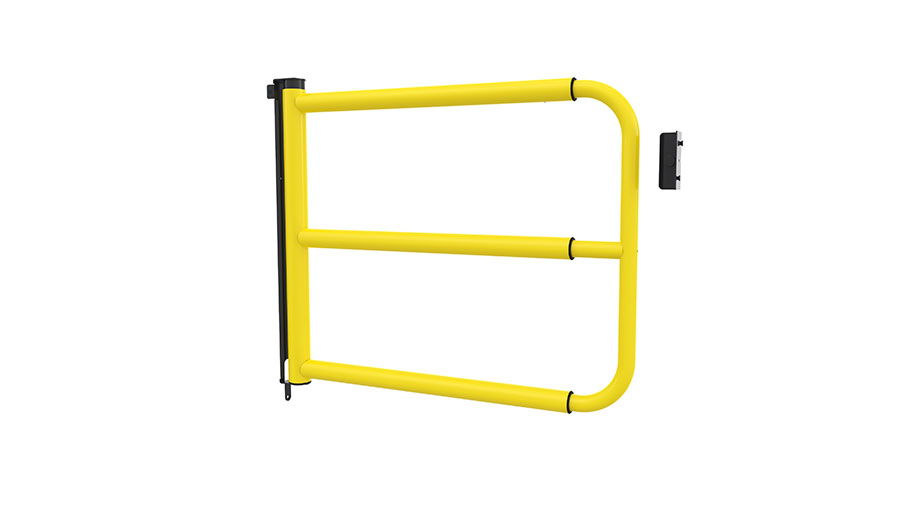

Self-closing swing gate

3D

For Axelent X-Rail fall protection, we offer an adjustable-width gate with self-closing mechanism. It is meant to be installed in front of stairs or ladders leading onto a platform or walkway. Coming from the stair or ladder the operator pushes it open toward the platform. After passing the gate...

Obtenga su cotización ahora

Modelos

CAD Artículo Color Descripción
T01-50 Amarillo zinc (RAL 1018) X-Rail self-closing swing gate

Descargas

T01-50

Guía de montaje

Protección anticaída X-Rail

Folleto

Protección anticaída X-Rail

Guía de montaje

Protección anticaída X-Rail technical

Información del producto

Especificaciones técnicas

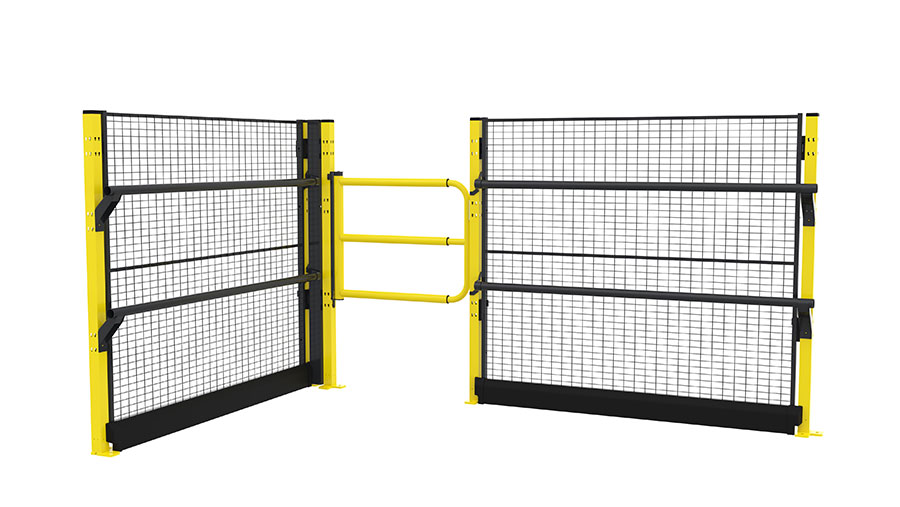

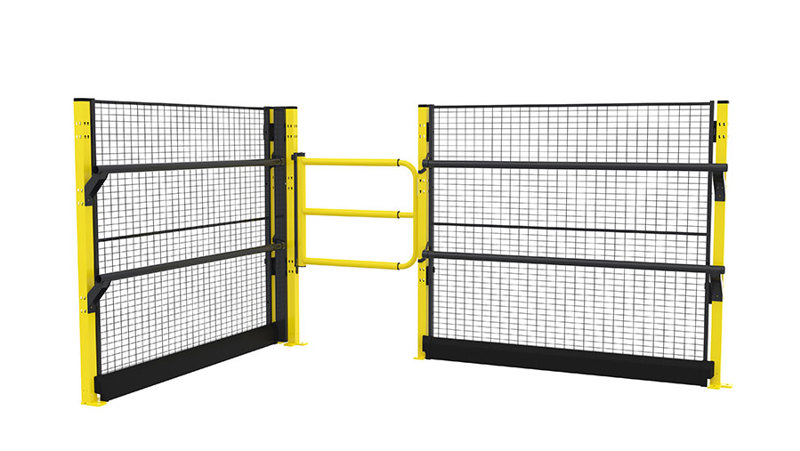

For Axelent X-Rail fall protection, we offer an adjustable-width gate with self-closing mechanism. It is meant to be installed in front of stairs or ladders leading onto a platform or walkway. Coming from the stair or ladder the operator pushes it open toward the platform. After passing the gate it softly closes and then serves as fall protection. The opening dimension can easily be adjusted between 690 and 1210 mm by means of telescoping bars. The gate is delivered complete and pre-assembled in a specially adapted packaging. It is easy to attach to the posts in the X-Rail range and can be used with right or left hinging.

The gate meets the requirements for use as fall protection. To attract attention and be clearly distinguishable from the guard railing, the gate is painted in a highlight colour. To prevent pinching,  infill pieces are available as accessories to create space between the gate and the guard railing, for example in connection in an internal corner.
